東京大学 情報理工学系研究科 コンピュータ科学専攻 2018年2月実施 問題2

标签：

• Tokyo-University
• Deterministic-Finite-Automaton
• Nondeterministic-Finite-Automaton
• Automata-State-Complexity

Author

kainoj

Description

For each $n \geq 1$, let $\Sigma_n$ be $\{a_1, \dots, a_n\}$, where $a_1, \dots, a_n$ are different from each other. For a word $w \in \Sigma_n^*$, we write $|w|_{a_i}$ for the number of occurrences of $a_i$ in $w$. We define the languages $L_{\forall, n}$ and $L_{\exists, n}$ over $\Sigma_n$ by:

$$L_{\forall, n} = \{w \in \Sigma_n^* \mid |w|_{a_i} \text{ is even for every } i \in \{1, \dots, n\}\},$$

and

$$L_{\exists, n} = \{w \in \Sigma_n^* \mid |w|_{a_i} \text{ is even for some } i \in \{1, \dots, n\}\}.$$

Answer the following questions.

(1) Give a deterministic finite state automaton with $4$ states that accepts $L_{\forall, 2}$.

(2) Give a non-deterministic finite state automaton with $7$ states (without $\epsilon$-transitions) that accepts $L_{\exists, 3}$.

(3) Prove that, for every $n \geq 1$, every deterministic finite state automaton that accepts $L_{\exists, n}$ has at least $2^n$ states.

(4) Prove that, for every $n \geq 1$, every non-deterministic finite state automaton (without $\epsilon$-transitions) that accepts $L_{\forall, n}$ has at least $2^n$ states.

Kai

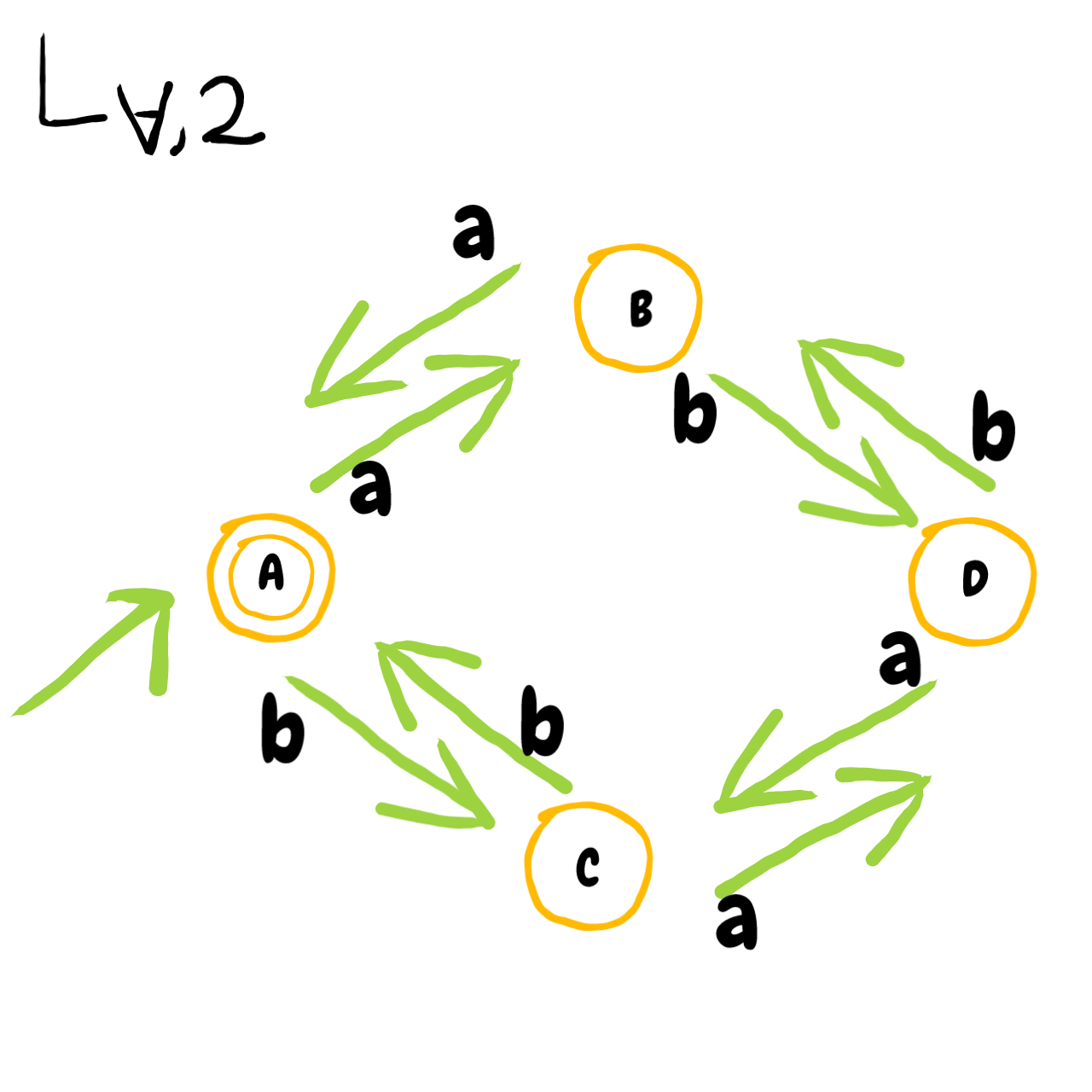

(1)

This one was also solved in Automata Theory, Languages and computation 3rd ed, 2.2.4, Example 2.4

Explanation:

• A: "number of $a$'s is even, number of $b$'s is even"
• B: "number of $a$'s is odd, number of $b$'s is even"
• C: "number of $a$'s is even, number of $b$'s is odd"
• D: "number of $a$'s is odd, number of $b$'s is odd"

(2)

Begin with an $\epsilon$-NFA as depiced in Fig. (2-a). It "guesses" which letter appears even number of times. To make it $\epsilon$-free, we either follow him: https://youtu.be/sq-dLKAd6bo?t=1714 or consider the followig: starting from start state, how far, i.e. which states can we reach on letter $a$? There are $3$ such states. We simply draw an edge to those states. Do the same for $b,c$. The final answer is on Fig. (2-b)

Fig. (2-a)

Fig. (2-b)

(3)

Prove that, for every $n\geq 1$, every deterministic finite state automaton that accepts $L_{\exists ,n}$ has at least $2^n$ states.

First, I'll show that there is a DFA with $2^n$ states. We can encode states of DFA $L_{\exists ,n}$ as a binary string $B = (b_n, b_{n-1}, \cdots, b_2, b_1)$ of length $n$, where $b_i = 1$ iff numbers of $a_i$'s is odd in so-far read sequence, else $0$. A state is accepting if its binary representation has at least one zero. There are $2^n$ such strings.

Now, I'll show that there is no DFA with less than $2^n$ states. If the DFA had fewer than $2^n$ states, then there would be some state $q$ such that the DFA can be in state $q$ after reading two different sequences of length $n$, say $a = a_1a_2\cdots a_n$ and $b = b_1b_2\cdots b_n$. If the sequences were of different parity, i.e. one of the sequences had a letter which appears even number of times, and the other sequence hadn't, then $q$ would be both accepting and nonaccepting state. If the sequences were of the same parity, then we could append some sequence $c_1\cdots c_m \in \Sigma^*$ to $a$ and $b$ such that $a_1a_2\cdots a_n c_1\cdots c_m$ and $b_1b_2\cdots b_n c_1\cdots c_m$ have different parity. Consider state $p$ that the DFA enters after reading $c_1\cdots c_m$. Then $p$ must be both accepting and nonaccepting, since either of $a_1a_2\cdots a_n c_1\cdots c_m$ and $b_1b_2\cdots b_n c_1\cdots c_m$ is accepted and the other isn't.

This problem could be also one-lined using Myhill-Nerode theorem. The only one difficulty here is to define $2^n$ equivalent classes. Try fiddling with binary strings.

(4) - send help

Prove that, for every $n\geq 1$, every non-deterministic finite state automaton (without $\epsilon$-transitions) that accepts $L_{\forall ,n}$ has at least $2^n$ states.

Begin with constructing DFA $A$ accepting $L_{\forall ,n}$ the same way as in Q3 – except that $A$ has only one accepting state, a string of all $0$'s. Obviously this DFA is also a~NFA. The equivalent NFA simply cannot guess parity of some letters: it has to remember information of parity of each letter. As shown in Q3, every letter requires $2$ bits, so minimum of $2^n$ states are required.
