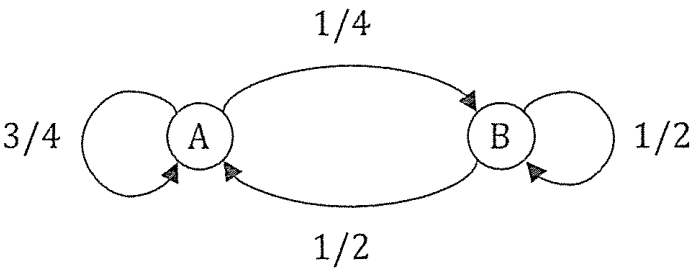

大学公表の原題 設問 以下の状態遷移図で示される単純マルコフ情報源から出力される系列 $X_1,X_2,\dots,X_t,\dots$ がある。ここで $X_t \in \{A,B\}$ である。

状態遷移（要約）：$P(A\mid A)=3/4,\ P(B\mid A)=1/4,\ P(A\mid B)=P(B\mid B)=1/2$。

$X_t$ は以下の通信路行列によって与えられる通信路を介して送信され、$Y_t \in \{\alpha,\beta,\gamma\}$ が受信されるとする。

	$\alpha$	$\beta$	$\gamma$
$A$	$2/3$	$1/3$	$0$
$B$	$0$	$1/3$	$2/3$

(1) 上記の通信路の通信路容量を求めよ。

(2) 受信した系列 $Y_1,Y_2,\dots$ においてシンボル $\alpha,\beta,\gamma$ の出現回数を数える。十分な時間が経過したとき、シンボルを出現回数の多い順に並べよ。

(3) マルコフ情報源のエントロピーレート $\lim_{t \rightarrow \infty}\frac{1}{t}H(X_1,X_2,\dots,X_t)$ を求めよ。

(4) $Y_t = \alpha$ のとき $Y_{t + 1}$ のエントロピー $H(Y_{t + 1}|Y_t = \alpha)$ を求めよ。

(5) $Y_t = \alpha$ かつ $Y_{t + 2} = \gamma$ のときの $Y_{t + 1}$ のエントロピー $H(Y_{t + 1}|Y_t = \alpha,Y_{t + 2} = \gamma)$ を求めよ。

题目描述

状态转移图给出一个简单 Markov 信息源，输出序列 $X_1,X_2,\ldots$，其中 $X_t\in\{A,B\}$：

$X_t$ 通过下列信道传输，接收 $Y_t\in\{\alpha,\beta,\gamma\}$：

输入	$\alpha$	$\beta$	$\gamma$
$A$	$2/3$	$1/3$	$0$
$B$	$0$	$1/3$	$2/3$

回答：

1. 求该信道的信道容量。
2. 对接收序列统计 $\alpha,\beta,\gamma$ 的出现次数。时间充分长时，按出现次数从多到少排列三个符号。
3. 求 Markov 信息源的熵率
   $$\lim_{t\to\infty}\frac1tH(X_1,\ldots,X_t).$$
4. 当 $Y_t=\alpha$ 时，求 $H(Y_{t+1}\mid Y_t=\alpha)$。
5. 当 $Y_t=\alpha$ 且 $Y_{t+2}=\gamma$ 时，求 $H(Y_{t+1}\mid Y_t=\alpha,Y_{t+2}=\gamma)$。

Kai

All logarithms below have base 2; entropies and capacity are measured in bits.

(1)

$$C = \max I(X;Y) = \max \{H(Y) - H(Y|X)\}$$

The channel matrix is:

$$\begin{bmatrix} 2/3 & 1/3 & 0 \\ 0 & 1/3 & 2/3 \end{bmatrix}$$

$$P(Y=\alpha) = p \cdot \frac{2}{3} + (1-p) \cdot 0 = \frac{2p}{3}$$

$$P(Y=\beta) = p \cdot \frac{1}{3} + (1-p) \cdot \frac{1}{3} = \frac{1}{3}$$

$$P(Y=\gamma) = p \cdot 0 + (1-p) \cdot \frac{2}{3} = \frac{2(1-p)}{3}$$

Note that when $p=\frac{1}{2}$, $P(Y=\alpha) = P(Y=\beta) = P(Y=\gamma) = \frac{1}{3}$, $H(Y)$ is maximized.

Hence we have

$$\begin{aligned} C &= \max \left\{ H(Y) - H(Y|X) \right\}\\ &= \max \left\{ \sum_{y = \alpha, \beta, \gamma}P(Y=y)\log_2\frac{1}{P(Y=y)} - \left( \sum_{x=A,B}P(X=x) H(Y|X=x)\right) \right\} \\ &= \left( 3\cdot \frac{1}{3}\log3 - \frac{1}{2}\left( \frac{2}{3}\log \frac{3}{2} + \frac{1}{3}\log 3\right)\cdot 2 \right) \\ &= \frac{2}{3} \end{aligned}$$

(2)

Order of symbols $\alpha, \beta, \gamma$ in decreasing order after a sufficiently long time.

To find the order, we need the steady-state distribution of the states and the emission probabilities. The transition matrix $P$ of the Markov source is:

$$P = \begin{bmatrix} 3/4 & 1/4 \\ 1/2 & 1/2 \end{bmatrix}$$

Solving for the stationary distribution $\pi$:

$$\pi P = \pi, \quad \pi_1 + \pi_2 = 1$$

$$\pi_1 = \frac{2}{3}, \quad \pi_2 = \frac{1}{3}$$

The probabilities of receiving $\alpha$, $\beta$, and $\gamma$ are:

$$P(\alpha) = \pi_A P(\alpha | A) = \frac{2}{3} \cdot \frac{2}{3} = \frac{4}{9}$$

$$P(\beta) = \pi_A P(\beta | A) + \pi_B P(\beta | B) = \frac{2}{3} \cdot \frac{1}{3} + \frac{1}{3} \cdot \frac{1}{3} = \frac{1}{3}$$

$$P(\gamma) = \pi_B P(\gamma | B) = \frac{1}{3} \cdot \frac{2}{3} = \frac{2}{9}$$

or we can simply calculate like this:

$$\begin{bmatrix}\frac{2}{3},\frac{1}{3}\end{bmatrix}\begin{bmatrix}\frac{2}{3}&\frac{1}{3}&0\\0&\frac{1}{3}&\frac{2}{3}\end{bmatrix}=\begin{bmatrix}\frac{4}{9},&\frac{1}{3},&\frac{2}{9}\end{bmatrix}$$

The order in decreasing order is $\alpha, \beta, \gamma$.

(3)

This transition matrix is irreducible and aperiodic, so the state distribution converges to its unique stationary distribution.

$$\begin{aligned} &\lim_{t\to\infty}\frac{1}{t}H(X_{1},X_{2},...,X_{t})\\ &=H(x_n|X_{n-1}) \\ &= - \left( \pi_A \left( \frac{3}{4} \log \frac{3}{4} + \frac{1}{4} \log \frac{1}{4} \right) + \pi_B \left( \frac{1}{2} \log \frac{1}{2} + \frac{1}{2} \log \frac{1}{2} \right) \right)\\ &= \frac{2}{3}\left( \frac{3}{4}\log \frac{4}{3} + \frac{1}{4}\log4 \right) + \frac{1}{3}\left( \frac{1}{2}\log2 + \frac{1}{2}\log2 \right) \\ &= \frac{5}{3} - \frac{1}{2}\log 3 \end{aligned}$$

(4)

When $Y_t=\alpha$, means $X_t=A$, here we come up with:

$$H(Y_{t+1} \mid Y_t = \alpha) = H(Y_{t+1} \mid X_t = A)$$

From the Markov matrix we know:

$$P(x_{t+1}=A|x_{t}=A)=\frac{3}{4}$$

$$P(x_{t+1}=B|x_{t}=A)=\frac{1}{4}$$

$$\begin{bmatrix}\frac{3}{4}&\frac{1}{4}\end{bmatrix}\begin{bmatrix}\frac{2}{3}&\frac{1}{3}&0\\0&\frac{1}{3}&\frac{2}{3}\end{bmatrix}=\begin{bmatrix}\frac{1}{2},\frac{1}{3},\frac{1}{6}\end{bmatrix}$$

$$\begin{aligned} H(Y_{t+1}|Y_{t}=\alpha)&=\frac{1}{2}\log2+\frac{1}{3}\log3+\frac{1}{6}(\log2+\log3) \\ &=\frac{2}{3}+\frac{1}{2}\log3 \end{aligned}$$

(5)

Conditioning on $Y_t=\alpha$ and $Y_{t+2}=\gamma$ fixes $X_t=A$ and $X_{t+2}=B$. Time homogeneity and the Markov property therefore give

$$H(Y_{t+1}|Y_{t}{=}\alpha, Y_{t+2}=\gamma){=}H(Y_{2}|Y_{1}=\alpha, Y_{3}=\gamma)$$

and

$$\begin{aligned} H(Y_2|Y_1=\alpha, Y_3=\gamma) &= -p(Y_2=\alpha|Y_1=\alpha, Y_3=\gamma) \log_2 p(Y_2=\alpha|Y_1=\alpha, Y_3=\gamma)\notag \\ &\quad-p(Y_2=\beta|Y_1=\alpha, Y_3=\gamma) \log_2 p(Y_2=\beta|Y_1=\alpha, Y_3=\gamma)\notag \\ &\quad-p(Y_2=\gamma|Y_1=\alpha, Y_3=\gamma) \log_2 p(Y_2=\gamma|Y_1=\alpha, Y_3=\gamma) \end{aligned}$$

We calculate the conditional probabilities one by one.

$$\begin{aligned} p(Y_2=\alpha|Y_1=\alpha, Y_3=\gamma) &= \frac{p(Y_1=\alpha, Y_2=\alpha, Y_3=\gamma)}{p(Y_1=\alpha, Y_3=\gamma)} \\ &= \frac{p(Y_1=\alpha, Y_2=\alpha, Y_3=\gamma)}{p(Y_1{=}\alpha, Y_2{=}\alpha, Y_3{=}\gamma)+p(Y_1{=}\alpha, Y_2{=}\beta, Y_3{=}\gamma)+p(Y_1{=}\alpha, Y_2{=}\gamma, Y_3{=}\gamma)} \\ &= \frac{\frac{1}{27}}{\frac{1}{27}+\frac{5}{162}+\frac{2}{81}} \\ &= \frac{2}{5} \end{aligned}$$

similarly we have

$$p(Y_2=\gamma|Y_1=\alpha, Y_3=\gamma) = \frac{2/81}{5/54} = \frac{4}{15}$$

and

$$\begin{aligned} p(Y_2=\beta|Y_1=\alpha, Y_3=\gamma) &= 1-p(Y_2=\alpha|Y_1=\alpha, Y_3=\gamma)-p(Y_2=\gamma|Y_1=\alpha, Y_3=\gamma)\\ &= 1-\frac{2}{5}-\frac{4}{15} = \frac{1}{3} \end{aligned}$$

Finally we have

$$\begin{aligned} H(Y_2|Y_1=\alpha, Y_3=\gamma) &= \frac{2}{5}\log\frac{5}{2}+\frac{1}{3}\log 3+\frac{4}{15}\log\frac{15}{4}\\ &= -\frac{14}{15} + \frac{3}{5}\log 3 + \frac{2}{3}\log 5 \end{aligned}$$
